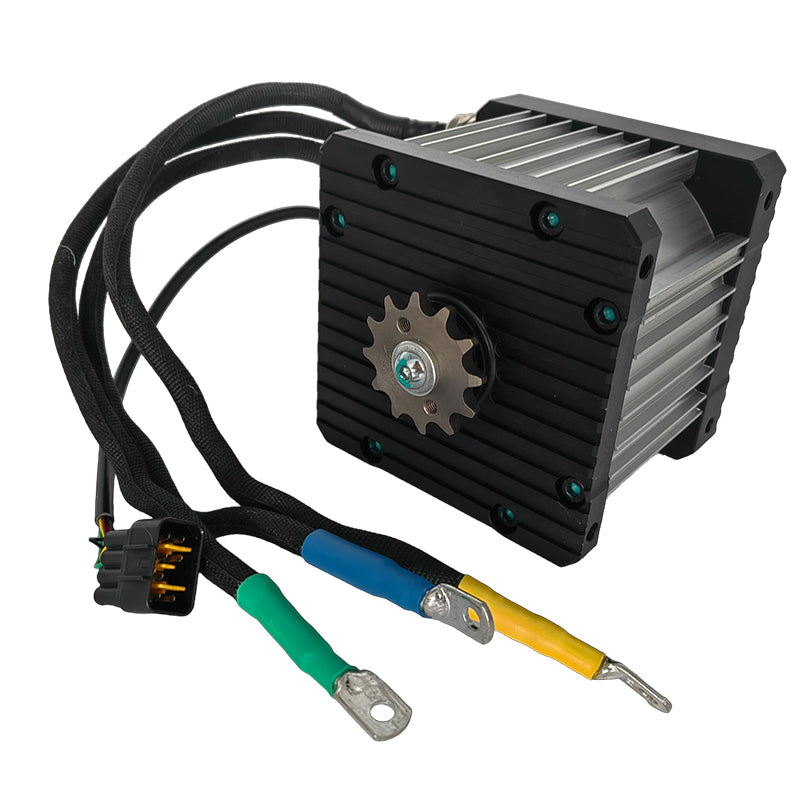

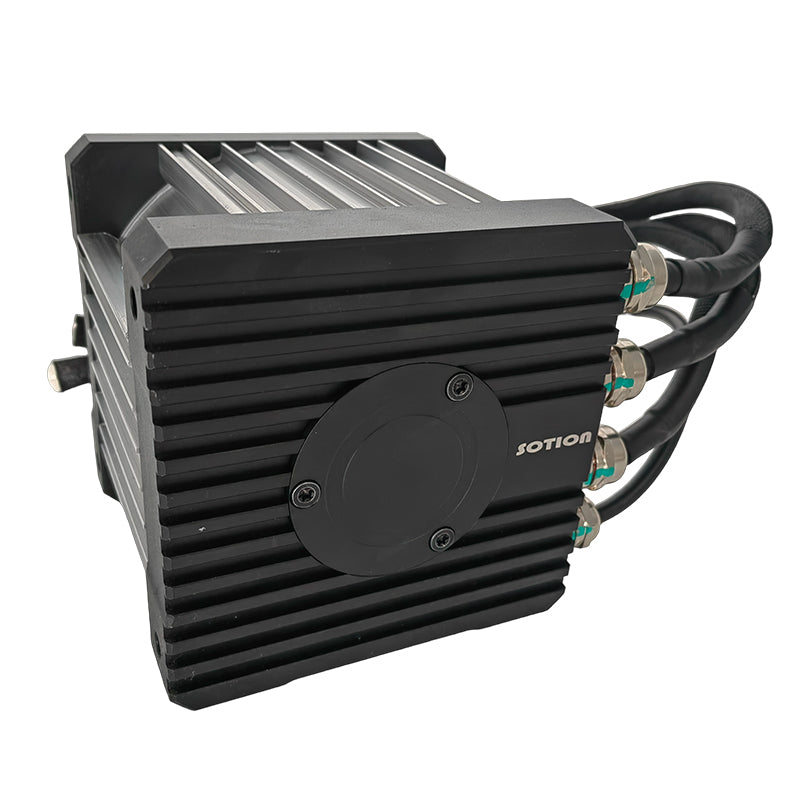

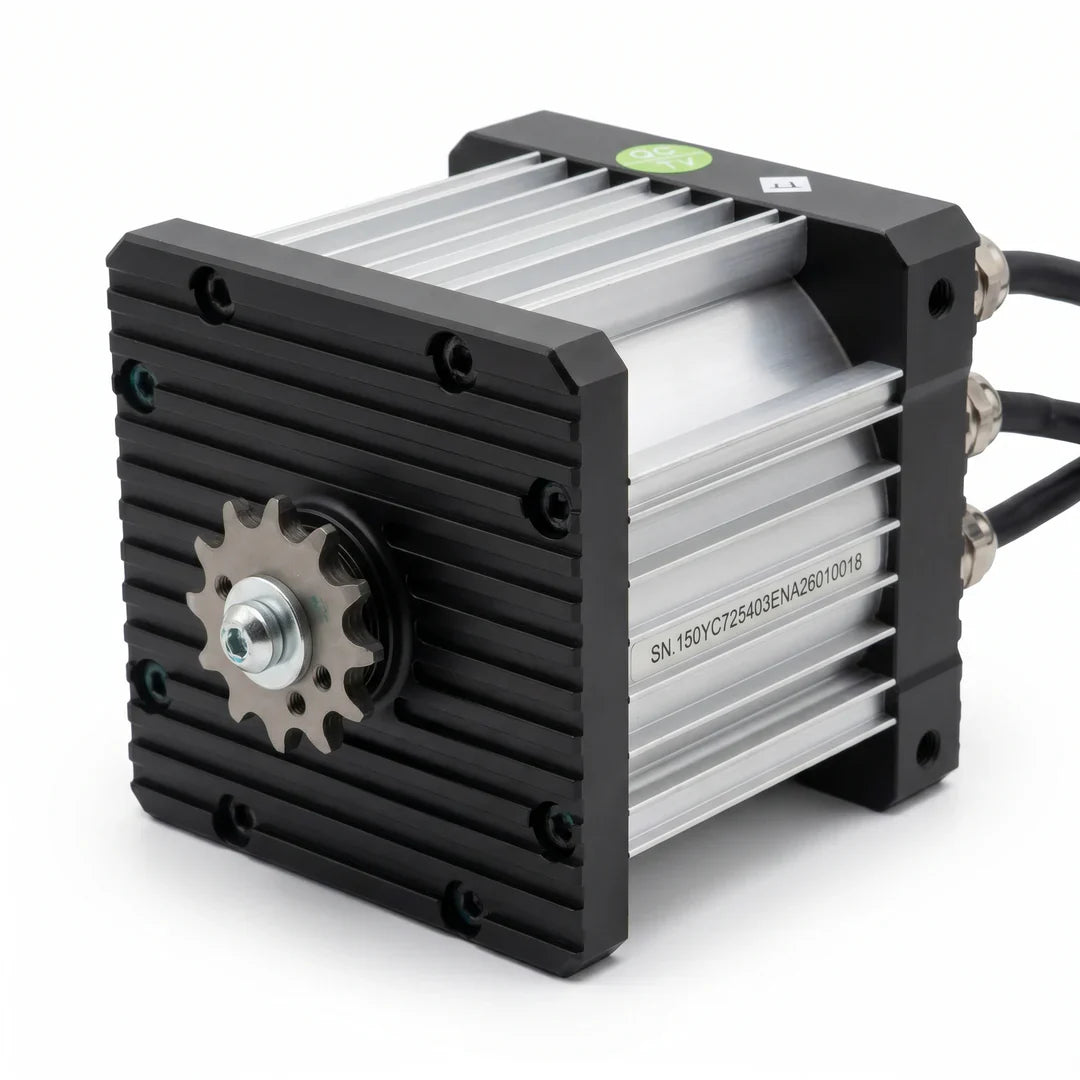

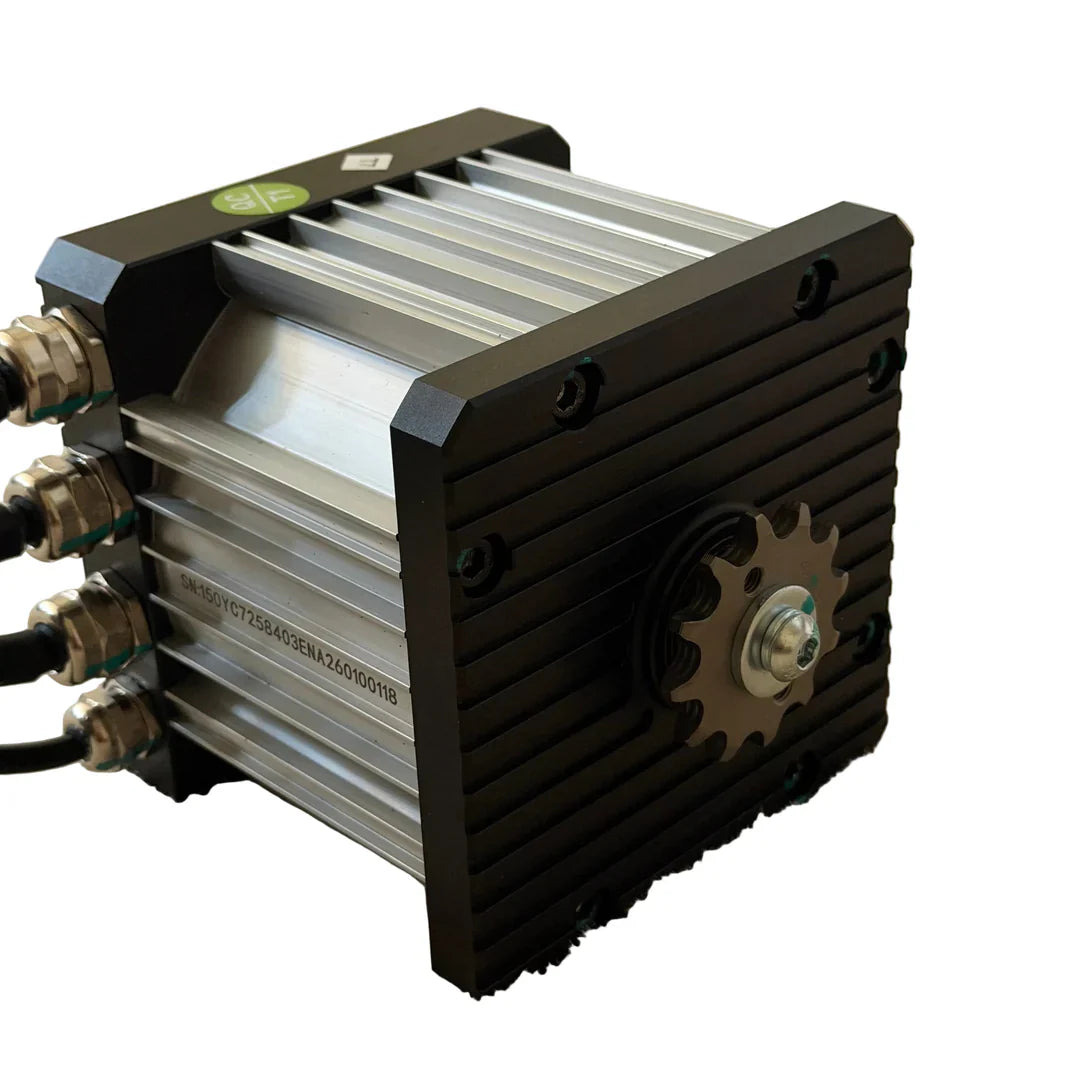

Unlock the true performance potential of your Tuttio Soleil 01 with the SOTION FW23 72V Mid-Drive Motor. Designed for riders who have outgrown the limits of the stock setup, this high-performance motor delivers a significant boost in power, responsiveness, and top-end capability while maintaining a compact, direct-fit design.
With no fabrication or adapters required, the FW23 is a clean upgrade that transforms your bike into a serious high-output machine.
Performance Overview
Voltage: 72V
Continuous Power: 8KW (10.73 HP)
Peak Power: 16KW (21.46 HP)
Max RPM: 10,000 RPM
Weight: 16 lbs
Features
High-Output Mid-Drive Design
Delivers strong torque and high RPM capability for aggressive acceleration and improved top speed potential.
Encoder Motor System
Requires an encoder-compatible controller for proper operation and optimal performance.
Recommended Controllers:
ND72450B
ND72680B (depending on battery setup)
⚠️ Not compatible with Hall sensor controllers.
Direct Fit Installation
Designed as a bolt-on replacement for the stock motor with no cutting, fabrication, or adapters required.
IP67 Waterproof Rating
Fully sealed construction protects against water, mud, and trail debris for reliable all-weather performance.
Efficient Heat Management
Finned aluminum housing provides passive heat dissipation to maintain stable operating temperatures under load.
High-Strength Output Shaft
Features a splined shaft with included 420 12T sprocket for secure power transfer.
Specifications
System Voltage: 72V
Continuous Power: 8KW
Peak Power: 16KW
Maximum RPM: 10,000
Shaft Type: Splined
Sprocket: 420 chain, 12T included
Control Type: Encoder
Waterproof Rating: IP67
Weight: 16 lbs
Compatibility
Tuttio Soleil 01
Important Notes
Requires an encoder-compatible controller for operation
Do not use Hall sensor controllers
Ensure proper battery and controller pairing for safe performance
Why Upgrade?
Massive power increase over stock motor
Higher top speed potential
Stronger acceleration and torque delivery
Direct bolt-on installation
Waterproof, trail-ready durability
